Course 3
Protect and Restore Natural Ecosystems and Limit Agricultural Land-Shifting (Synthesis)
This course focuses on the land-management efforts that must complement food demand-reduction efforts and productivity gains to avoid the harms of agricultural land expansion. One guiding principle is the need to make land-use decisions that enhance efficiency for all purposes—not just agriculture but also carbon storage and other ecosystem services. Another principle is the need to explicitly link efforts to boost agricultural yield gains with protection of natural lands.
The Causes and Consequences of Shifting Agricultural Land
Merely eliminating the need for a net expansion of agricultural land will not avoid all carbon and ecosystem losses because agricultural land is not merely expanding, it is also shifting. At a regional level, agricultural land is shifting from developed to developing countries.53 One reason is that growth in population and food demand is mostly occurring in developing countries. Rising food demand in sub-Saharan Africa, for example, is likely to drive cropland expansion of 100 Mha between 2010 and 2050, even allowing for high estimated yield gains in the region and continued importation of roughly one-fifth of staple foods. Another reason is growing global demand for some highly traded crops that developing countries have learned to grow well, such as soybeans and palm oil.
Agricultural land is also shifting within regions and countries, particularly from less productive and more sloped lands to flatter, more productive, more densely vegetated lands. These shifts result in gross forest losses that are much larger than net losses (Figure 12). Many abandoned agricultural lands do reforest but, unfortunately, the trade-off when native forests are replaced with planting or regrowing forests elsewhere is not environmentally neutral. Conversion of natural ecosystems, which is occurring mostly in the tropics and neotropics, tends to release more carbon per unit of food54 and harm more biodiversity than reforestation of abandoned land offsets elsewhere. The losses of carbon during land conversion also occur quickly, whereas rebuilding carbon in vegetation and soils occurs gradually over longer time periods, exacerbating climate change in the interim.55 The common tendency of countries to replant abandoned land as forest plantations also reduces carbon and biodiversity benefits.
A sustainable food future therefore requires efforts to reduce agricultural land-shifting, minimize the environmental consequences of inevitable expansion in some countries, and more actively reforest abandoned agricultural land. Under the Bonn Challenge—a global effort to bring 350 Mha into restoration by 2030—47 national and subnational actors have now committed to restore over 160 Mha.56

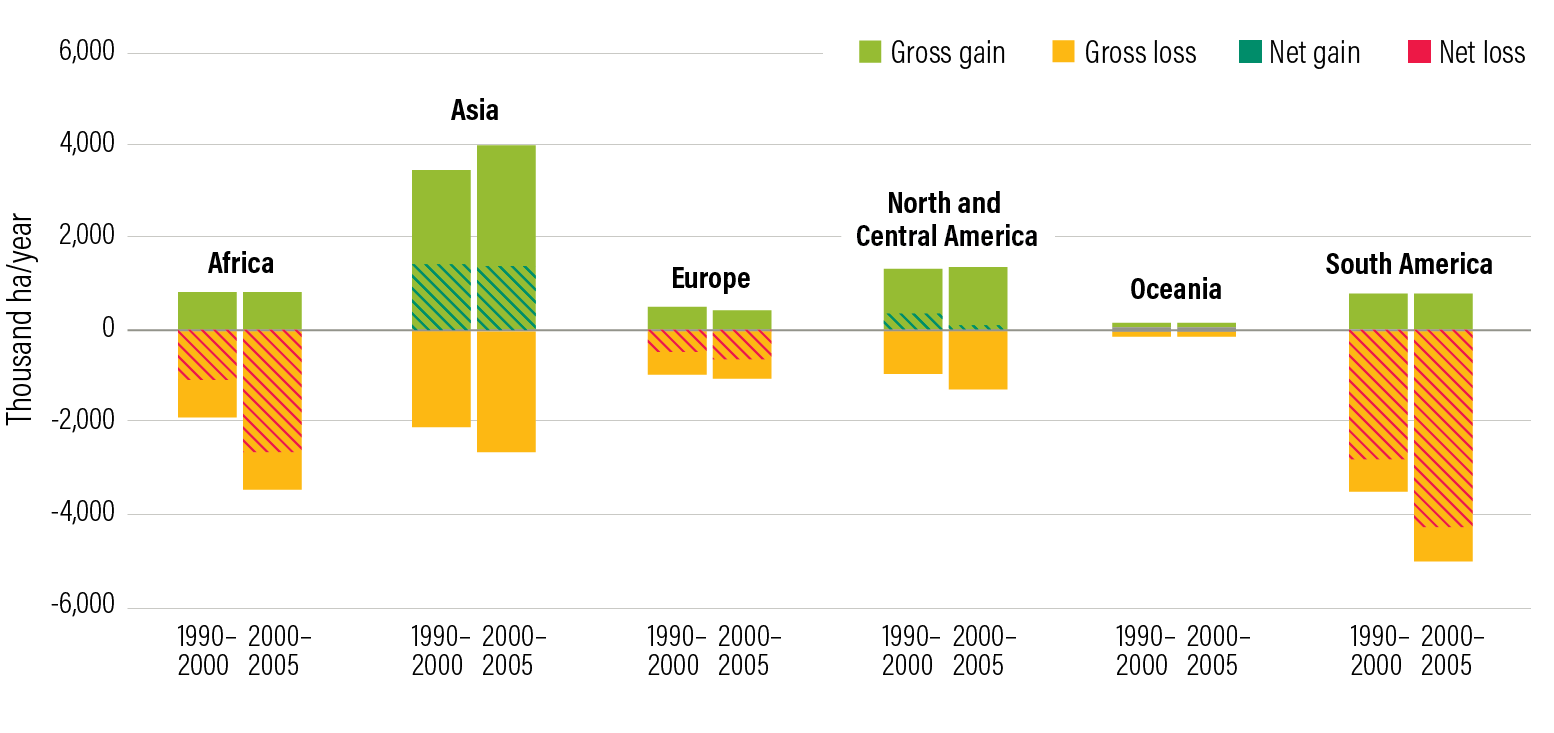

Figure 12 |
Gross forest losses are far greater than net forest losses because agricultural lands are shifting
Source
FAO (2012a).
-
In some countries, preventing all agricultural land expansion is not feasible. For example, rising food demand in Africa will realistically require some land expansion, as will global demand for vegetable oil in Southeast Asia. In countries where expansion or shifts of agricultural land are inevitable, countries need to identify and facilitate expansion only where it would cause less environmental harm.
The goal is to find lands with relatively low environmental (and other) opportunity costs but with good productive potential. These opportunities involve trade-offs (Figure 13). Evaluation of land conversion requires assessing not only the loss of existing carbon but also the forgone carbon sequestration on lands that would otherwise regenerate, for example, on cut-over areas. It should also require analysis of the carbon and biodiversity losses per ton of crop (not per hectare) to minimize total environmental costs while meeting food needs.
This menu item requires above all a commitment by national governments, but it also requires tools that international aid agencies should help fund and that could also help link agricultural improvement and natural landscape protection more generally:
- Tools and models must estimate likely yields and effects on biodiversity and carbon of different development patterns, incorporate information on various obstacles, and allow a wide range of stakeholders to explore acceptable alternatives. A tool developed for Zambia, for example, showed how balancing production and environmental goals could come close to maximizing yield potential while holding down transportation costs, carbon losses, and adverse effects on biodiversity.61
- Integrating such tools with analyses of agricultural potential and current farming systems on existing agricultural land could help target use of agricultural improvement funds. Tools that are useful at the farm level and then aggregate to the regional and national level have the greatest potential because their use should improve the quality of analysis over time.
- Governments will need to use such assessment tools to guide land-use regulations, plan road routes, and manage public lands.

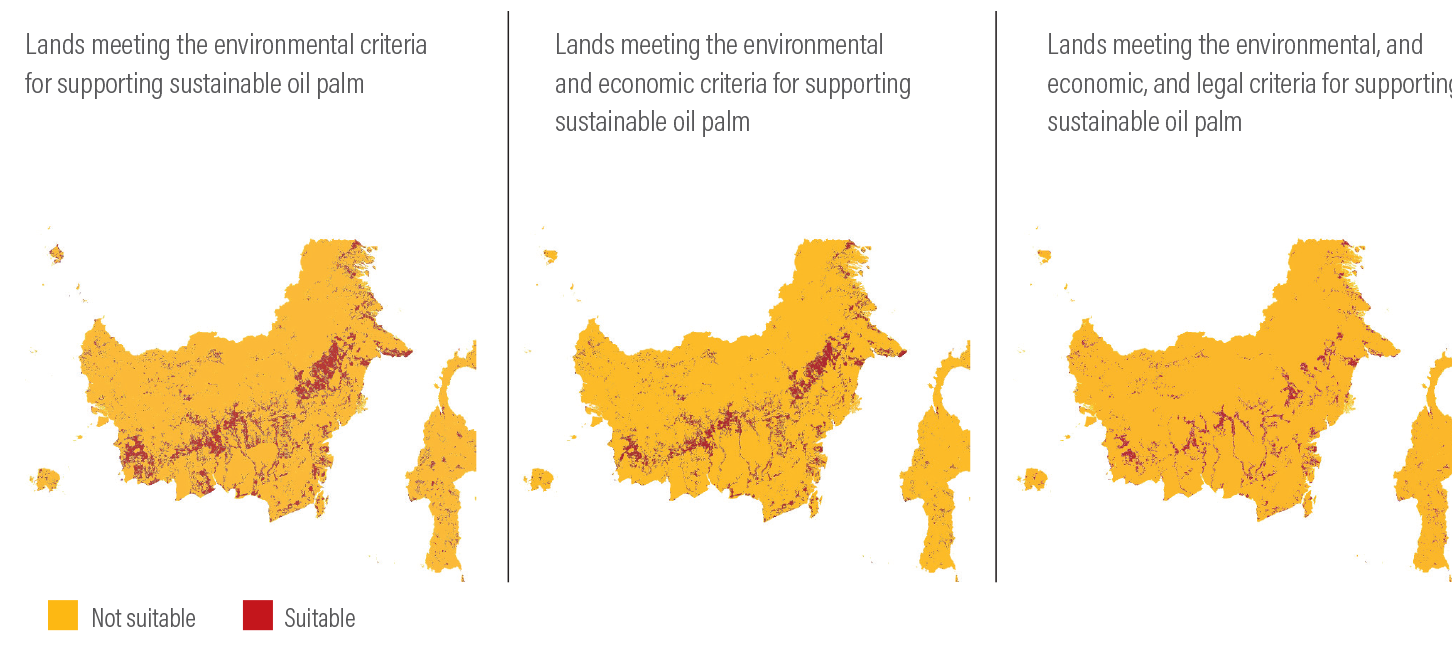

Figure 13 |
Screening out lands that do not meet environmental, economic, and legal criteria reduces the area of land suitable for oil palm expansion in Kalimantan, Indonesia
Source
Gingold et al. (2012)
-
The highest priority for immediate restoration should be the world’s 26 Mha of drained peatlands. This small area is responsible for roughly 2 percent of annual human-caused GHG emissions, according to our estimates. The best evidence indicates that roughly half of these peatlands have little or no agricultural use or are used only for grazing.
Peatlands are wetlands that built up massive carbon-rich soils over hundreds or thousands of years.65 Their conversion for agriculture and plantation forestry typically requires drainage, which causes the soils to decompose and sometimes burn, releasing large quantities of carbon into the atmosphere (Figure 14). Rewetting peatlands by blocking drainage ditches can typically eliminate emissions.
Peatlands appear to be far more extensive than previously thought, suggesting high risk of further losses. Researchers have recently discovered the world’s largest tropical peatland in the heart of the Congo rainforest in central Africa.66 It stores an estimated 30 gigatons of carbon, equivalent to roughly 20 years of U.S. fossil fuel emissions. Other large peatlands probably exist in Latin America.
Modest efforts at restoration have occurred in Russia.67 The president of Indonesia has announced a broad restoration goal, and the country reported 200,000 hectares of peatland restoration between 2017 and 2018.68 Yet the global effort to restore peatlands is minimal compared to the need. Eliminating half of peatland emissions would close the global GHG emissions gap by 5 percent, while eliminating 75 percent would close the GHG mitigation gap by 7 percent. A series of actions is required:
- Restoration efforts require more funding both to perform the physical restoration and to compensate farmers and communities who must forgo other uses, even if relatively modest. Ideally, assistance would be used to boost productivity on farms outside peatlands.
- Peatland conservation and restoration require better mapping, especially because peatlands cannot be identified from satellite imagery. Mapping and data collection should be a priority for national governments, international agencies, and even private parties.
- Strong laws must protect peatlands to prevent their conversion to agriculture.

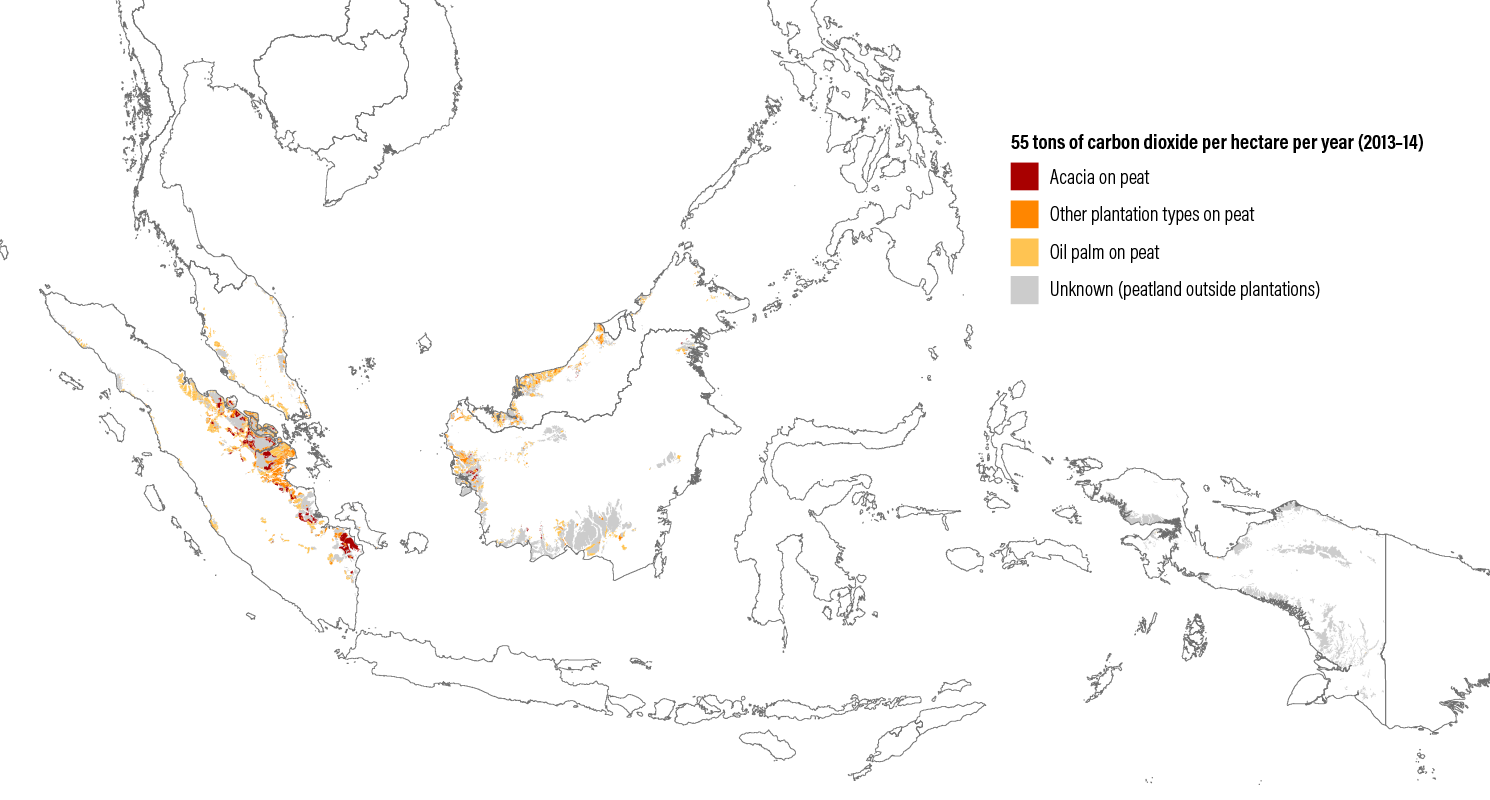

Figure 14 |
Greenhouse gas emissions from drained peatlands are ongoing in Indonesia and Malaysia
Source
WRI (2017).
Endnotes
- 53FAO (2017a).
- 54West et al. (2010).
- 55Hirsch et al. (2004).
- 56See http://www.bonnchallenge.org/commitments. A variety of scenarios exist to achieve global warming of 1.5°C only but all are uncertain and almost all require substantial “negative emissions,” i.e., withdrawals of carbon from the air. We estimate that 585 Mha of reforestation on liberated agricultural land would be needed to fully offset 4 Gt of agricultural emissions. These offsets would persist for 40 years after which other reductions or offsets would be required. This could only be achieved through actions across many menu items in Course 1 (reduce demand), Course 2 (increase productivity), and Course 3 (protect and restore natural ecosystems and limit agricultural land-shifting). The 350 Mha restoration target in the Bonn Challenge includes reforestation, agroforestry, soil enhancement, and other productive forms of restoration. Thus the Bonn Challenge could contribute to the needed 585 Mha.
- 57Laurance et al. (2014).
- 58Wormington (2016).
- 59Jackson (2015); Nepstad et al. (2014); Assunção et al. (2012); Gibbs et al. (2016).
- 60Boyd et al. (2018).
- 61Estes et al. (2016).
- 62In this report, we use the term “restoration” in a relatively narrow sense, meaning to return land to a natural or semi-natural state of vegetation. Other than in the case of peatlands, we usually mean forest restoration. We recognize that the term can be used more broadly, for example, to include agroforestry as a means to restore land to productive use, or more broadly still, to include any measures that restore ecological health to a tract of land, whether or not trees are involved. See, for example, Bessau et al. (eds) (2018); Hanson et al. (2015).
- 63See, for example, Stern (2006); Nabuurs et al. (2007); Sathaye et al. (2011); and Sathaye et al. (2005).
- 64Siddique et al. (2008).
- 65Kolka et al. (2016).
- 66Dargie et al. (2017).
- 67Wetlands International (2017).
- 68Gewin (2018).
